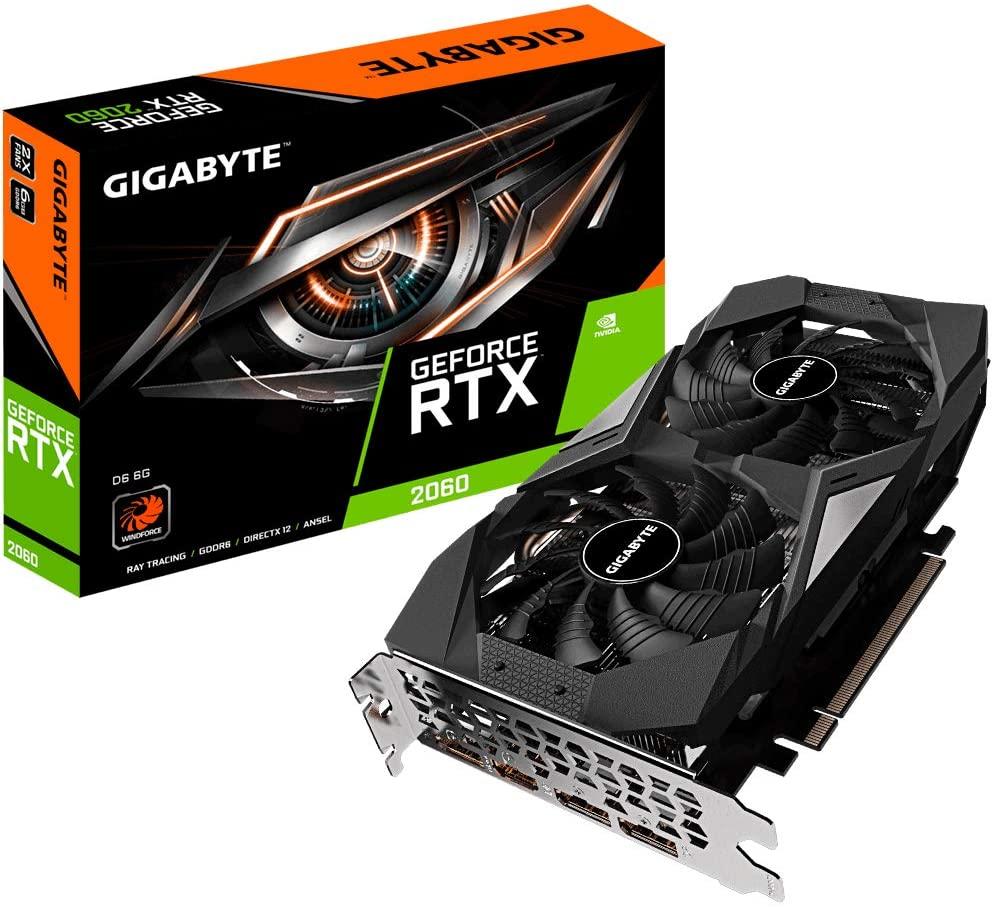

Gigabyte GeForce RTX 2060 6GB GPU £469.99


WINDFORCE 2X COOLING SYSTEM

WINDFORCE 2X cooling system features two 90mm unique blade fans, alternate spinning, one composite copper heat pipe direct touches the GPU and 3D active fans, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.

ALTERNATE SPINNING

The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

HEAT PIPE DIRECT TOUCH

The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

COMPOSITE HEAT-PIPE

The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.

BUILT STRONG

EXTREME DURABILITY

The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

PROTECTION BACK PLATE

The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.



Main Features



  • Powered by GeForce RTX 2060
  •
  • Integrated with 6GB GDDR6 192-bit memory interface
  •
  • WINDFORCE 2X Cooling System with alternate spinning fans
  •
  • 90mm unique blade fans
  •
  • Protection back plate



GPU



Chipset ManufacturerNVIDIA
Chipset Model NameGeForce RTX
Chipset Model Number2060
Chipset Additional InformationD6 rev 2.0
Boost Chip Clock1680 MHz
Number of Cores1920 cores
Graphics CoreCUDA



Memory

Memory Size6144 MB
Memory Clock14 Gbps
Memory TypeGDDR6
Memory Width192 bit
Memory Bandwidth336 GB/s



Interfaces/Ports

Video Card Bus TypePCI Express
Video Card Bus Version3.0 x16
HDMI Port1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4



Resolution

Multiple Monitor Support (Max)Yes (4)
Maximum Resolution7680 x 4320 pixels



System Requirements

System Requirements1 x PCI Express 3.0 x16 slot
Recommended 500W PSU with 1 x 8-pin PCIe connector



Electrical

Power Connector1 x 8-pin PCIe
Recomended Power Supply500 W



Physical

Form FactorGraphics Card
In The BoxGraphics Card
Quick Guide
Driver CD
Width40.5 mm (Dual Slot)
Depth225.65 mm
Height122.02 mm



Warranty

Warranty3 Years



Key Features

Interface TypePCI Express 3.0 x16
VGA ConnectionNo
DVI ConnectionNo
HDMI ConnectionYes
Graphics UsabilityGaming
DisplayPort ConnectionYes
Direct X SupportDirect X 12
Cooler TypeDynamic Fan
Low ProfileNo
NVIDIA GeForceRTX 2060
PCI-E Pin Type8-Pin
Cooling TechnologyDynamic Fan
VR ReadyNVIDIA
GPU Length226 mm
Card WidthDual Slot



Graphics

Graphics ChipsetGeForce RTX 2060



Graphics Device

G-SyncYes



Compatibility

Lite Hash RateNo



Item Details

ManufacturerGigabyte
Manufacturer CodeGV-N2060D6-6GD
EAN4719331309190
UPC889523028438
ConditionNew
